SPECIFICATIONS

LT-80W-AA/LT-80W-AA-PRO (Optical power 10W) Feature:

The difference between LT-80W-AA and LT-80W-AA-PRO:

LT-80W-AA-PRO has an upgraded nozzle compared to the previous LT-80W-AA. The difference of this nozzle is that it has an advanced hydrodynamic design that makes better use of air pressure. When using the same air compressor, the upgraded version has a faster jet airflow.

LT-80W-AA-PRO Features

1.LT-80W-AA-Pro

It has an upgraded nozzle compared to the previous LT-80W-AA. The difference of this nozzle is that it has an advanced hydrodynamic design that makes better use of air pressure. When using the same air compressor, the upgraded version has a faster jet airflow.

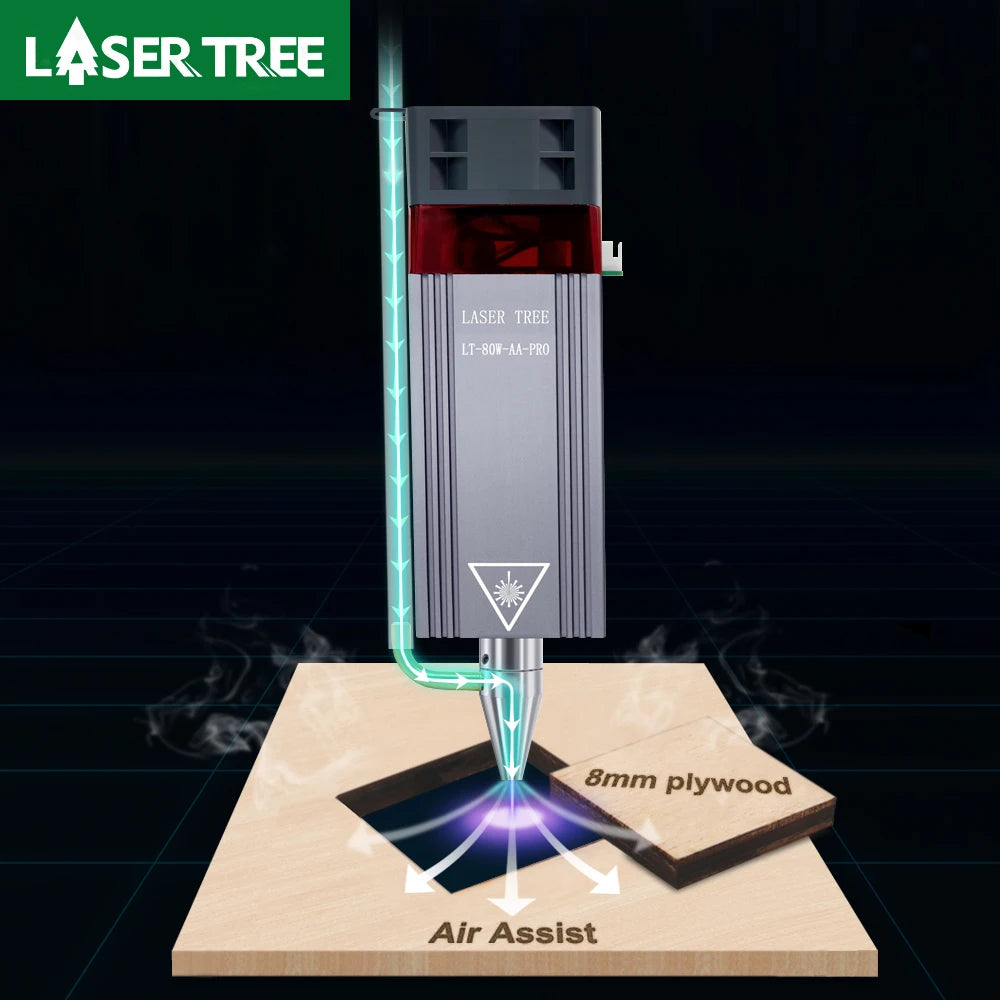

2.With the Air Asssit Nozzle

The laser head comes with a specially designed air assist nozzle. When cutting with this laser head, the air assit system will blow air through the air nozzle. That will bring you excellent cutting experience and greatly reduce burned marks.

Air pump suggestion: Air pressure and capacity: ≥0.027kPa, 27L/min

3. Remarkable Cutting Ability

Cutting 8mm bass plywood ,120mm/min ,one pass.

Cutting 5mm bass plywood, 50mm/min, one pass.

Cutting 5mm MDF by 2 passes, 150mm/min , 2 passes.

4.With the Laser Protective Cover

Comes with a removable protective cover. Whether engraving or cutting, use this shield to filter blue light and work without laser glasses, convenient and fast. It's also easy to remove if you don't need it.

5. Widely Compatible Design

LT-80W-AA-Pro laser module can be installed on Z*aitu,O*tur,Tw* Trees,S*ulpful9, Xtool, A*omstack and other models of DIY laser engraving machines.

(If you are not sure if it is compatible, please send us a picture of your machine’s contro board, we will provide you with a connection diagram.)

With Air Assist VS No Air Assist

Using air assist helps to cool the material and prevent heat damage, and also helps to remove any debris and fumes generated during the laser cutting process, resulting in a clean cut surface.Powerful Cutting Ability

Maximum material thickness that can be cutInterface Diameter Size

Air nozzle outer diameter: 6mm; inner diameter: 3.5mm

Air tube outer diameter: 8 mm;inner diameter: 6 mm

Air pump suggestion: Air pressure and capacity: ≥0.027kPa, 27L/min

Eye Protective Cover Design

With a laser protective cover, it can effectively filter blue light when engraving or cutting with laser head.

Widely Compatible Design

LT-80W-AA-Pro laser module can be installed on Z*aitu,O*tur,Tw* Trees,S*ulpful9, Xtool, A*omstack and other models of DIY laser engraving machines.

(If you are not sure if it is compatible, please send us a picture of your machine’s contro board, we will provide you with a connection diagram.)

Provide Spare Protection Window Piece

Debris and fumes from the laser cutting process are blown onto the lens, providing a spare lens for better cleaning and replacement.

Dual-LDs with Beam Compressed Technology

One laser module has two built-in laser diodes.The optical power of each diode is 5W.

With beam combination technology, our laser module is double powerful and the beam quality is as good as a single diode.

OTHER LASER MODULE:

Thicker beam and shorter effective energy range

Lower energy density beam

LASER TREE LASER MODULE:

Thinner beam and a longer effective energy range

Higher energy density beam, stronger cutting abilityFor Engraving Work

The focal point is at the surface of the material.

For Cutting Work

The ideal position of the focal point is in the middle of the material, the cutting focal point of LT-80W-AA is 45mm, the length of the air nozzle is 39mm, so the focal point position is 6mm below the air nozzle. For example, if you want to cut 8mm plywood, the distance from the air nozzle to the surface of the material should be 6mm-8mm/2=2mm.

LT-40W-A-Gold

【 40W Cutting Engraving Module】

a.Directly engrave mirror stainless steel: no need painting black;

b. Super fast engraving speed: 304 stainless steel, up to 30mm/s with 20mm focus length

c. Remarkable cutting ability: cutting through 5mm thickness plywood by one pass at speed of 1mm/s with 35~38mm foucs lenght.

【Original Diode with FAC】

Original diode, high quality,20,000 hours life time! Built-in FAC to make the beam size much smaller at focus, power density increase 4~5times, the engraving speed increase 4~5 times accordingly. At same time, the precision increase 4~5 times also. The solution make high engrave speed and high precision possible.

【Easy to Use】

Wavelength: 450nm; Input: DC 12V 1.8A(1.5A-2A); Power adjustable: Support 5V PWM modulation; Input port: XH2.54-3P socket; control line installation method: Pluggable, Adjustable laser head, easy to adjust, connection is convenient; suitable for DIY engraving machine. And excellent compatibility with most other brands engraver machine, CNC router and 3D printers machine.

【Widely Material Use】

A professional engraving tools,Engraving materials: MDF,rubber, wood, paper, plastic,plywood, PCB board, aluminum, stainless steel, ceramic, stone, etc. Cutting material: wood, black acrylic, bamboo,MDF etc. Give you more creative works to cutting and engraving on DIY dog tags, labels, greeting cards, mini-models, engraving children drawings etc. As a meaningful gift for family, friends (⚡Unable to engrave with blue/purple/white/transparent material, aluminum without oxide layer)

Specifications:

Effect Laser Power: LT-40W-A-Gold(Optical power: 5W)
Material: Aluminum Alloy+Plastic
Light Color: Blue
Wave Length: 450nm
Facula Form: Punctiform, Adjustable Focus
Input Voltage: 12V 2A
Interface Parameter: Support TTL signal controls power
Item Size: 12*4*4cm
Package Size: 14*6.2*6.2cm
Item Weight: 300g

The best focus length 35mm for cutting
The best focus length 20mm for engraving

LT-40W-F23

【Upgraded 23mm Fixed Focus Laser Module】

a.Directly engrave mirror stainless steel: no need painting black;

b. Super fast engraving speed: 304 stainless steel, up to 800mm/min with 23mm focus length;

c. Remarkable cutting ability: cutting through 4mm thickness plywood by one pass at speed of 80-100mm/min.

【Beam compressed spot】

Our blue laser module with Original diode, high quality,20,000 hours life time! Beam compressed spot to make the beam size much smaller at focus, power density increase 4~5 times, the engraving speed increase 4~5 times accordingly. At same time, the precision increase 4~5 times also. The solution make high engrave speed and high precision possible.

【Easy to Use and Remove to Install】

The 40W laser engraving head with metal wind gathering hood,prevent flames from burning. Upgraded Magnetic eye protective cover, easy to remove and install. Control line installation method: pluggable. suitable for DIY engraving and cutting machine.

【Applicable Materials】

Plywood, black acrylic, MDF, wood, paper, leather, bamboo, plastic, rubber, alumina, stainless steel, etc. (Unable to engrave: blue/purple/white/transparent material, aluminum without oxide layer)

Specification:

Effect output power: 40W(Optical power: 5W)

Material: aluminum alloy + plastic

Light color: blue

Wavelength: 450nm

Spot form: Punctiform, fixed focus

Input voltage: 12V 2A

Interface parameters: support TTL signal control power

Item size: 12 * 4 * 4cm

Packing size: 14 * 6.2 * 6.2cm

Product weight: 240g

Packing list:

1 *Laser head   1*Eye protection design  1*Matal wind gathing hood  1*3 Pin input cable

LT-20W-A

Features:

Blue Laser Modual --- Professional laser head with high speed and high stability. Bright blue-violet light, easy for locating when engraving.

Adjustable Focuse --- Adjustable laser head, easy to adjust, ensure engraving with good quality and high efficiency.

Easy to Assemble --- Small and compact, engraving material ---Wood, leather, bamboo, rubber, stainless steel,etc.

Specifications:

Effect Laser Power: 20W

Material: Aluminum Alloy+Plastic

Light Color: Blue

Wave Length: 450nm

Facula Form: Punctiform, Adjustable Focus

Input Voltage: 12V 2A

Interface Parameter: Support TTL signal controls power

Item Size: 9.5*3.5*3.5cm

Package Size: 14*6.2*6.2cm

Item Weight: 146g
